Tea leave cutter

Supplier: FUYI Machinery

Share to:

Details

Tea leave cutter

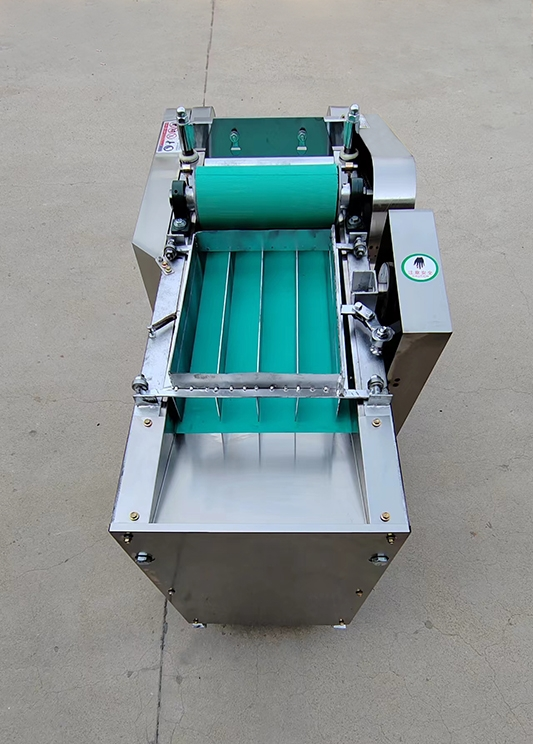

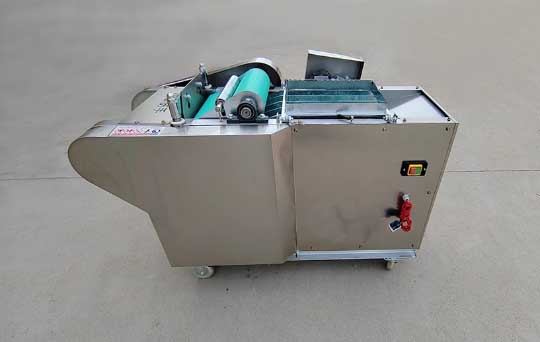

tea leave cutter tea leave cutter side view

Brief introduction:

 This machine is suitable for cutting and processing various types of tea leaves. The stage of use is before flattening, and after processing, the finished product has a uniform length and good appearance. Compared to manually cut tea leaves, the selling price can be increased.

 Using a conveyor belt to automatically transport tea to the cutting edge, simulating manual cutting work. The automatic sorting of the feeding port can automatically sort out the disorderly tea leaves, which is beneficial for cutting the feeding section. The length of tea cutting can be adjusted, and it can be cut into tea segments with a specification length of 2-100 millimeters. Process 200-400 kilograms of tea per hour. It is an auxiliary machinery for tea producing areas and stir frying tea factories.

 Technical parameters :

Model:

FT-320

FT-450

FT-515

Conveying belt width:

32CM

45CM

51.5CM



Cutting leaves size:

 2mm-60mm (adjustable)

 2mm-60mm (adjustable)

 2mm-60mm (adjustable)

Capacity:

200kg/h

300kg/h

400kg/h

Voltage:

220V/50HZ Single phase

380V



380V



Power:

2.2KW

2.2KW

2.2KW

Machine size:

135*55*95cm

135*65*95cm

135*82*95cm



Machine weight:

155kg

185KG

190 kg

Application:

tea leave cutter application
