Thick sauce crystal mud filling machine with pressure
Supplier: FUYI Machinery
Share to:
Details

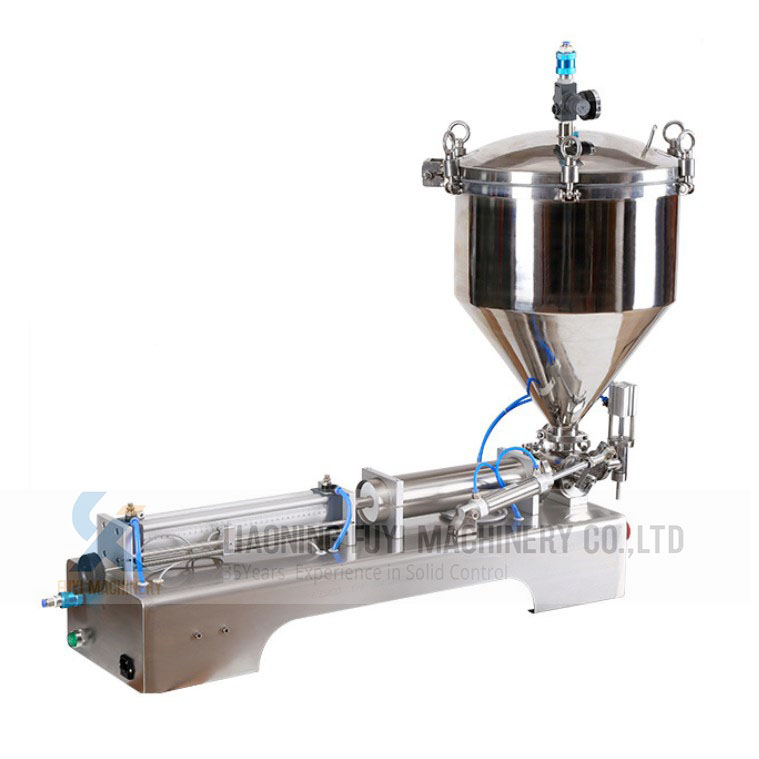

Thick paste/sauce crystal mud filling machine with pressure
G1GHD Single Head High Viscosity Liquid Filling Machine
Product Description
1. this pressure paste filling machine is suitable for thick paste, or sticky materials with low fluidity.
1. this pressure paste filling machine is suitable for thick paste, or sticky materials with low fluidity.
The machine is the semi-auto piston type filling machine, working under the state without electricity, it is easy to operate.
2.Equiped with one filling heads in-phase, improving the work efficiency.
3.This machine is reasonable in design, smart in model, the pneumatic part adopts the pneumatic components of Taiwan.
4.The part conacting materials is made of stainless steel 304 and PTFE.
5.With adjustment handle of filling volume, the filling speed can be adjusted at will, with high filling acuracy.
6.Filling head adopts anti-leakage, anti-pull and with lifting filling device.
2.Equiped with one filling heads in-phase, improving the work efficiency.
3.This machine is reasonable in design, smart in model, the pneumatic part adopts the pneumatic components of Taiwan.
4.The part conacting materials is made of stainless steel 304 and PTFE.
5.With adjustment handle of filling volume, the filling speed can be adjusted at will, with high filling acuracy.
6.Filling head adopts anti-leakage, anti-pull and with lifting filling device.
Technical Paramers
|
Model
|
Air pressure
|
weihght
|
Hopper
|
Dimension
|
|
10-100ml
|
0.4-0.6Mpa
|
28KG
|
45*45*45cm
|
95*32*34cm
|
|
30-300ml
|
28KG
|
95*32*34cm
|
||
|
50-500ml
|
28KG
|
95*32*34cm
|
||
|
100-1000ml
|
24kg
|
127*32*35cm
|
||
|
300-2500ml
|
35KG
|
119*38*42cm
|
||
|
1000-5000ml
|
35KG
|
123*38*42cm
|
Application
They are suitable to fill water, beverage, oil, ink, lotion, shampoo, sauce, jam, gel, cream, etc in the field of cosmetic,
drinks, chemical, medical, food, etc.
They are suitable to fill water, beverage, oil, ink, lotion, shampoo, sauce, jam, gel, cream, etc in the field of cosmetic,
drinks, chemical, medical, food, etc.
