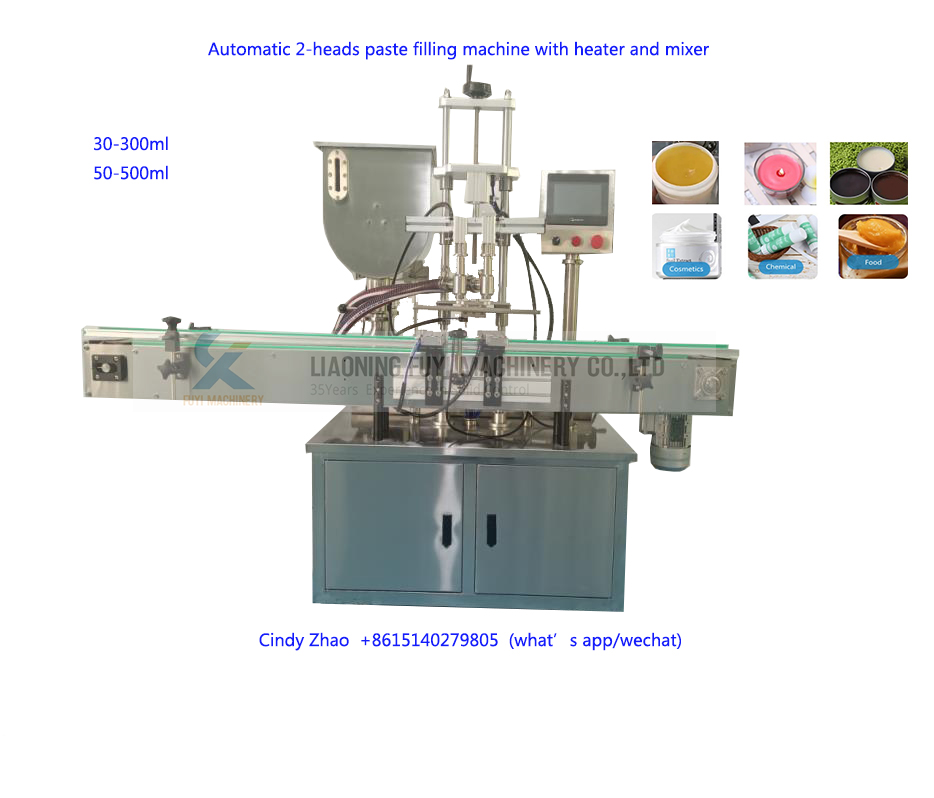

UHD-2 300ML 500ML 2 heads filling machine with blender and heater
Supplier: FUYI Machinery
Share to:
Details
Brief introduction：
This equipment is mainly suitable for filling high- viscosity paste materials or liquid, which need heating and mixing while filling. Such as glue, cream, wax, and etc.Main features:
1. 80L stainless steel u shape hopper
2. Equip with anti-drip filling nozzles, with self-mixing function, even filling.
3.With water heating device for the parts in contact with materials,can be heated between 0℃-100℃.
3.The hopper and cylinder can be disassembled for easy cleaning. Stirring paddle
4.High-end custom large scale high power cylinders, more powerful, more efficient, anti-rust.
3.With water heating device for the parts in contact with materials,can be heated between 0℃-100℃.
3.The hopper and cylinder can be disassembled for easy cleaning. Stirring paddle
4.High-end custom large scale high power cylinders, more powerful, more efficient, anti-rust.
5.Filling range can be changed as per your request.
6. Heating function is optional.
7. can connect to production line, such as capping machine and labeling machine.
Technical parameters :
Technical parameters :
|
Model:
|
UHD-2
|
|
Filling range:
|
30-300ml/50-500ml or customized
|
|
Power supply:
|
380v/50HZ 5KW
|
|
No. of filling nozzles:
|
2
|
|
Material:
|
SS304
|
|
Heating Temperature：
|
100 ℃
|
|
Air pressure:
|
0.4-0.6Mpa
|
|
Filling accuracy:
|
±1%
|
|
Filling speed:
|
20-50bottles/min ( depend on materials)
|
|
Suitable bottle diameter:
|
≧4（mm）
|
|
Suitable bottle height:
|
≧10（mm）
|
|
Dynamic mode:
|
Pneumatic ( air compressor )
|
|
Machine size:
|
2200*1000*1800mm
|
|
Machine weight:
|
280kg
|
|
Note: air compressor need provided by your own side or order .
|
|
Application:
