WF SERIES GEAR PLATE TYPE UNIVERSAL CRUSHER
Supplier: FUYI Machinery
Share to:
Details
MAIN PURPOSE:
The machine is applied to such industries as pharmacy, chemicalindustry,pesticide, food and grain.
MAIN FEATURE:
The machine makes use of the high- speed relative movement between the moveable and fixed gear plates, so as to make the materials crushed under the impact and friction of gear, as well as impacts between materials. The machine is characterized by simple and solid structure, smooth operation and good crushing effect. Materials to be crushed can be discharged from the grinding cavity of the main machine. The granule size can be obtained by changing mesh screens with different bore diameters. Besides, the machine is fully made of stainless steel, The internal walls of casing are subject to mechanical processing to achieve smooth surfaces, changing roughness and residual powders of inner walls in previous models of machines.
It can make the production of medicine, food and chemical products meet national standards and GMP requirements.
|
Model |
WF-190 |
WF-260 |
WF-320 |
WF-380 |
WF-400 |
|
Material |
Whole SS304 |
Whole SS304 |
Whole SS304 |
Whole SS304 |
|
|
Capacity（kg/h） |
10-120 |
30-200 |
50-300 |
70-500 |
70-500 |
|
Voltage（V） |
220/380 |
380 |
380 |
380 |
380 |
|
Spindle speed（r/min） |
4200 |
4200 |
4200 |
4200 |
4200 |
|
Power（kw） |
2.2 |
5.5 |
7.5 |
11 |
15 |
|
Overall dimension（mm） |
480*520*1040 |
750*600*1260 |
780*700*1350 |
800*900*1500 |
900*1300*1500 |
|
Weight（kg） |
75 |
180 |
260 |
320 |
600 |
STRUCTURAL FEATURES:
The machine has reasonable structure, stable operation, simple operation and low wo
rking noise. The machine is equipped with air cooling device to reduce the temperature of the machine. The working part is enclosed in the body of all stainless steel, and the high-speed operation achieves the advantages of medicine hygiene, low loss and fast efficiency.

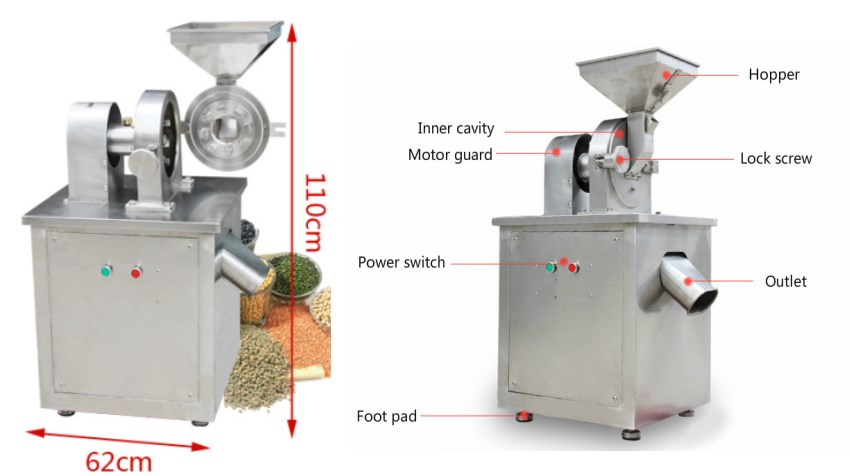

MACHINE DETAILS:

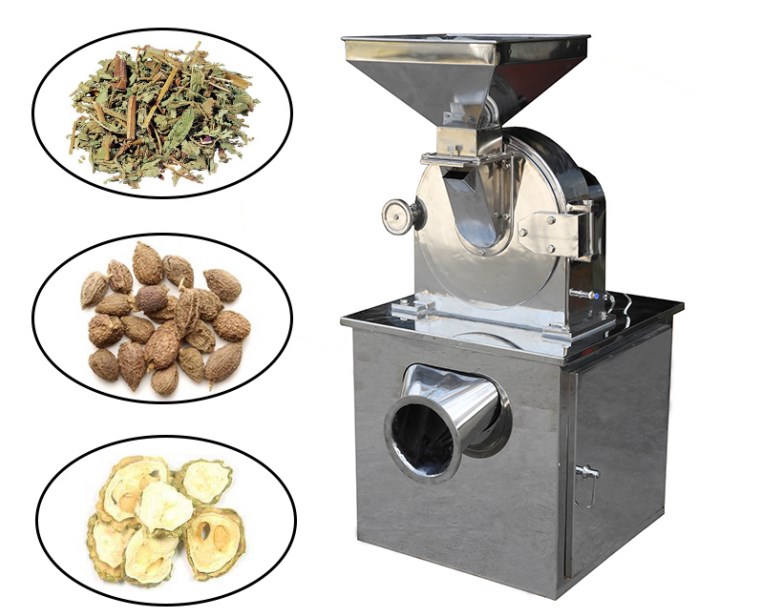

APPLICATION:
