YPC-25A single chamber liquid detergent capsules making machine
Supplier: FUYI Machinery
Share to:
Details

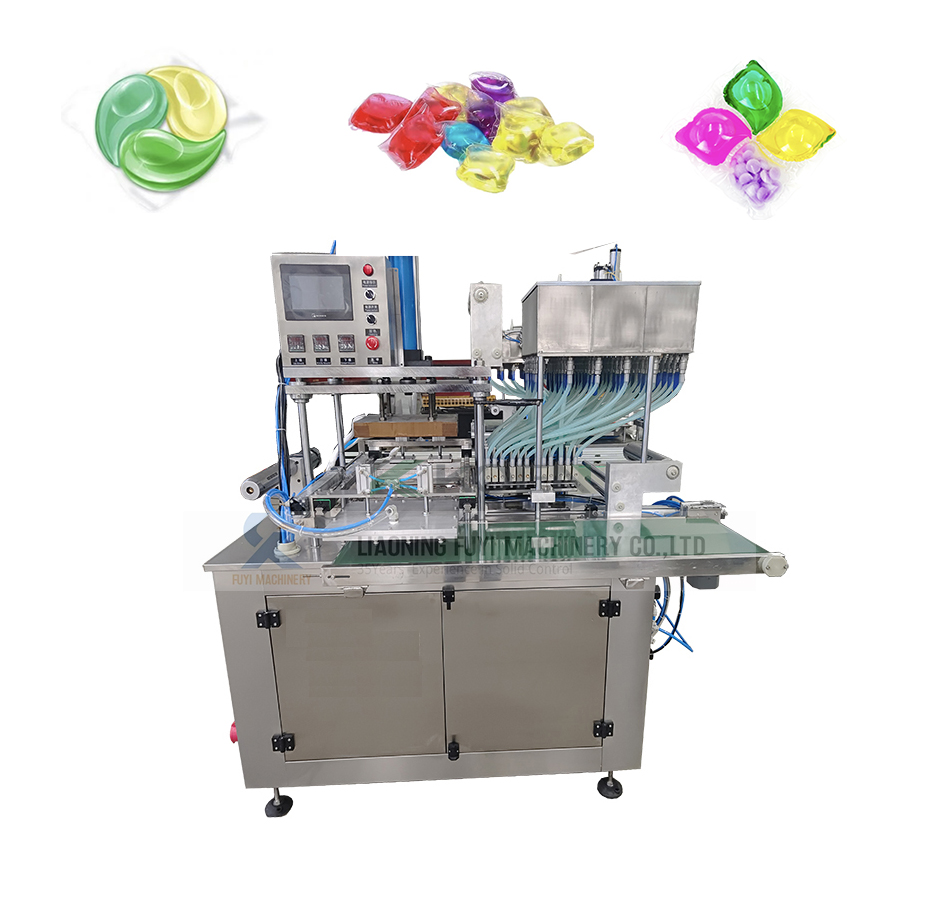

YPC-25A single chamber liquid detergent capsules making machine
Brief introduction:
*YPC25-A machine is used to pack and seal the detergent liquid into PVA water soluble film.
*It is equipped with 16 filling nozzles, which fill the liquid from tank into sealing mould.
* Machine working function, including automatic pull film, automatic feed material(liquid), and automatic sealing,
and automatic end product extraction.
* Machine in PLC control and is equipped with temperature control unit to adjust the heating.
* Machine is wholly made of SS304, clean and nice.
* Equipped with vacuum pump, it can help the finished product in good sealing effective.
* It has been exported to USA/SPAIN/JAPAN.
Technical parameters:
|
YPC25-A Automatic liquid /gel PVA film packing machine |
|
1: Equipped with 25 filling nozzles(Machine nozzles quantity depend on the pod weight, 25 nozzles are for max 15g pod) |
|
2: Speed: 32 pcs/min for 2 or 3 chamber liquid pods) , 50 pcs/min for single chamber liquid pods |
|
3: Power: 7.0 kw 4: Air compressor: 0.6Mpa (need an air compressor at 4KW, 100L air capacity) 5:Voltage:380V/50Hz 3P (can be customized as per your request) 6: Packing weight:max 15g 7: Machine size: 1850X1930X2200mm 8:Main machine material: SS304 ( SS316 can be customized, but need higher cost) |
Remark:
- Please tell me your accurate pod size before you place order, samples are better provided.
- Different filling weight doesn’t affect replacing mold.

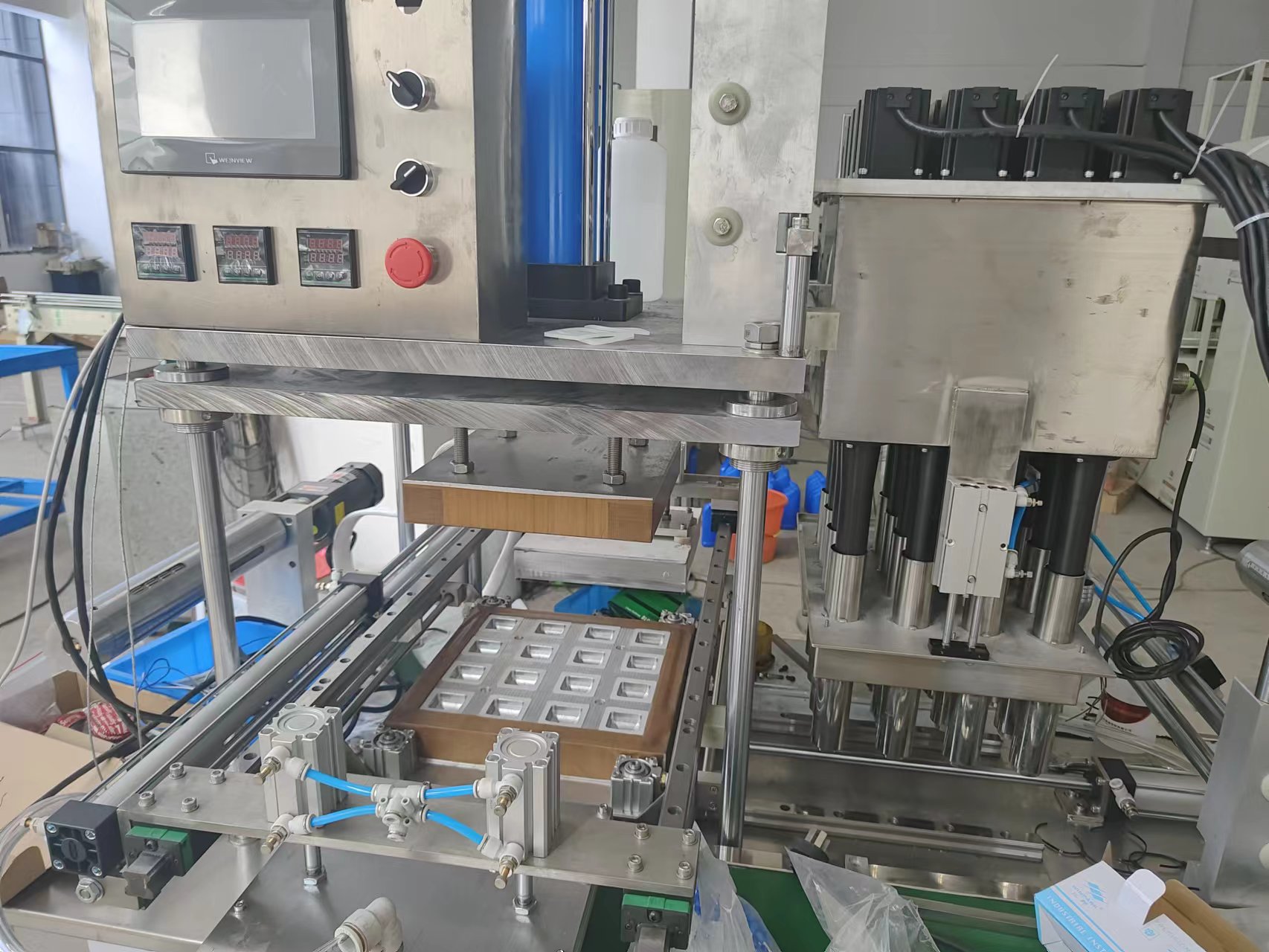

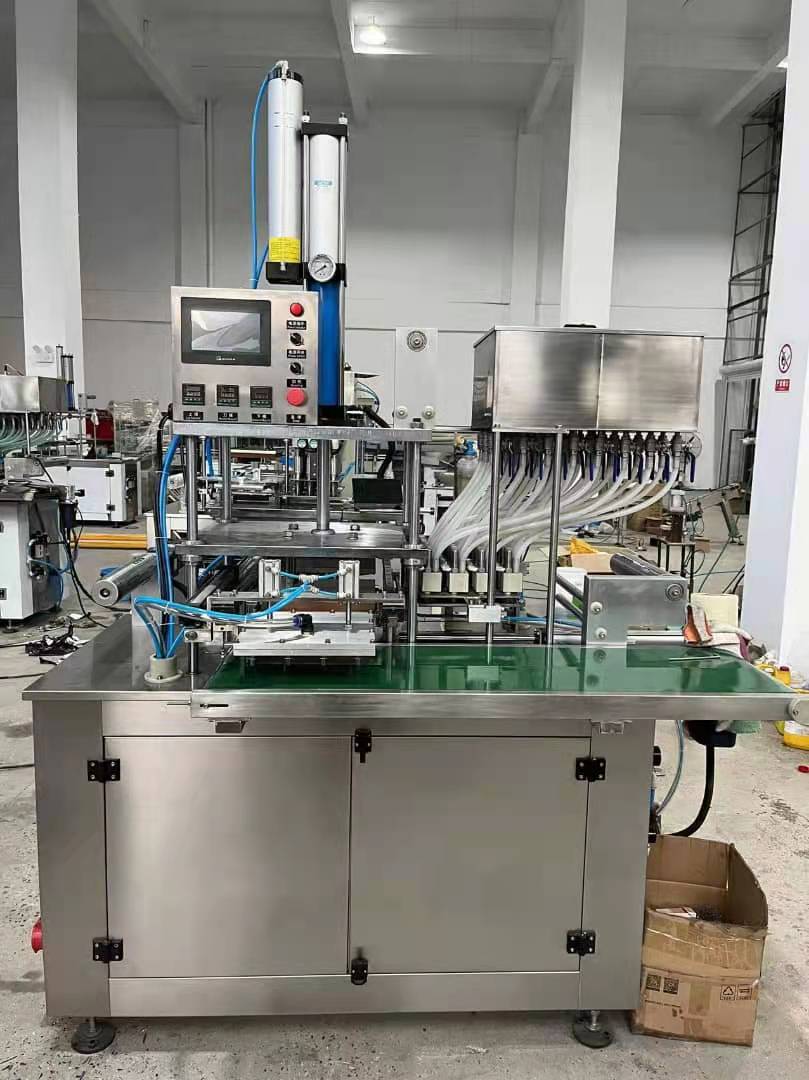

Machine details:
