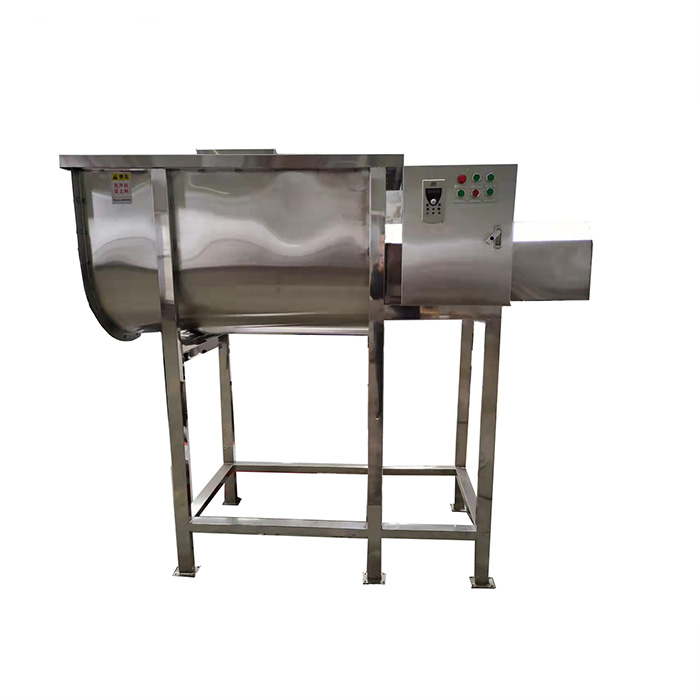

ZH-600 Stainless steel powder mixing machine

Brief introduction:power mixing machine

The machine is mainly suitable for food, daily chemical, condiment, medicine and other industries. Such as milk powder, cereal powder, soybean milk powder, Cereals, condiments, food additives, washing powder, talcum powder, salt, coffee, milk tea, flour and other materials.

 Main features:

  1. The mixing tank and screw belt are made of stainless steel, which is easy to clean and avoid corrosion.
  2. The gear reducer is used for wear resistance and durability, long service life, low noise.
  3. Two-way S-shaped screw belt, rapid and uniform mixing.
  4. Castors, variable frequency governor , screw conveyor can be installed as per your request.
  5. Other customization items is supported.

Technical data:



Model:

ZH-600

Barrel volume:

600L (0.5-6M3)

Mixing Capacity:

300 kg/h

Voltage:

380V/50Hz 3P

Motor power:

3kw

Outlet dia. of butterfly valve:

159mm

Mixing tank size:

 1200*680*700mm

Stirring paddle thickness:

6mm

Rotation speed:

24 rpm

Size (mm):

2150*760*1300mm

Weight:

200KG

Application:

powder liquid mixing machine
