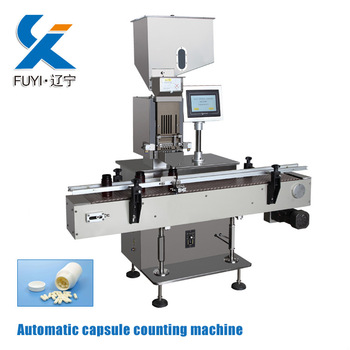

ZJS-A Automatic Capsule Counting Machine
Supplier: FUYI Machinery
Share to:
Details
ZJS-A Automatic Capsule Counting Machine
Brief introduction:
ZJS-A model machine is intelligent high precision automatic capsule counting machine, can automatically fill any size capsules into bottle.
Characteristic:
High speed PLC system controls the whole process including counting, filling and monitoring.
The machine counts precisely, quickly.
Put bottles by conveyor belt and fill automatically.
High differentiate rate, fast responding speed.
Can be connected to production line, such as feeding turntable, capping machine, labeling machine and so on.
Technical parameters:
|
Model |
ZJS-A |
|
Mould changing time |
5mins |
|
Working capacity |
20000---40000pcs/hour |
|
Counting Accuracy |
100% |
|
Max. Bottle diameter |
130mm |
|
Power supply |
220V, 50Hz, 1.2kw |
|
Compressed air |
0.03m3/min 0.7Mpa |
|
Machine size/weight |
1.3×0.6×1.4 m 130kg |
|
Packaging size/weight |
1.4×0.68×1.1 m 150kg |

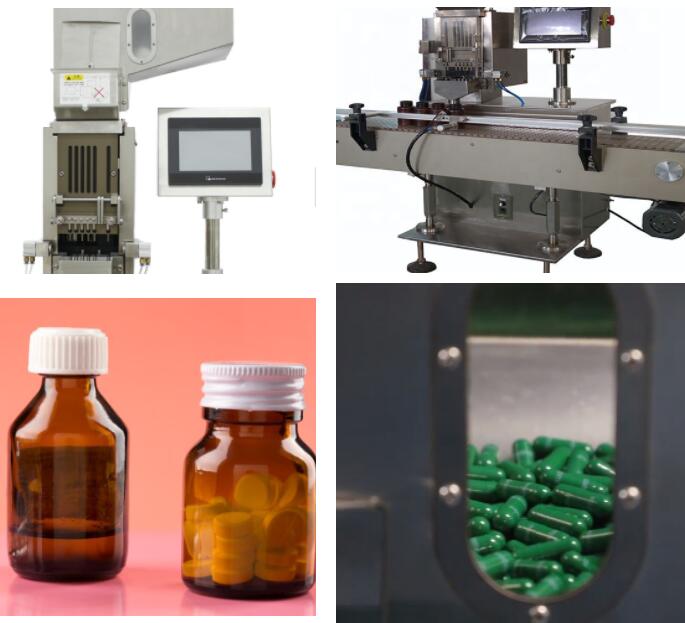

Machine details:
