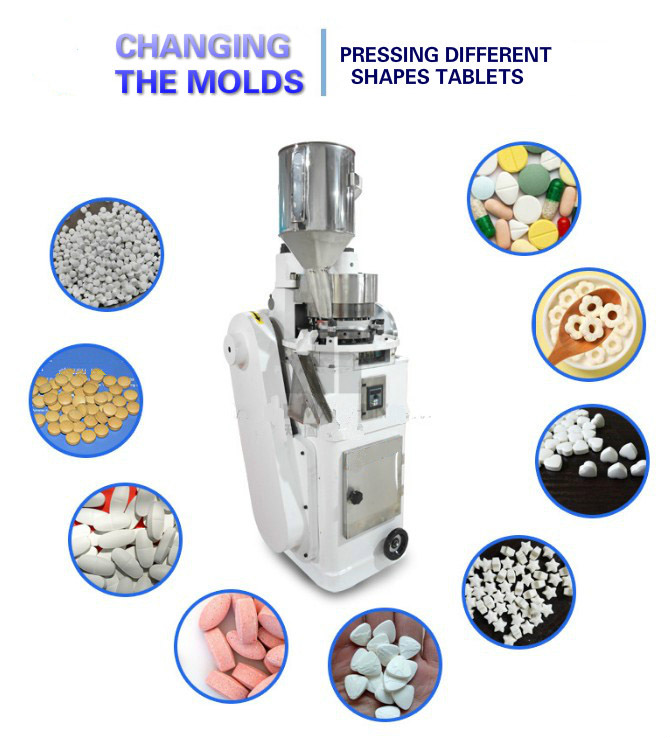

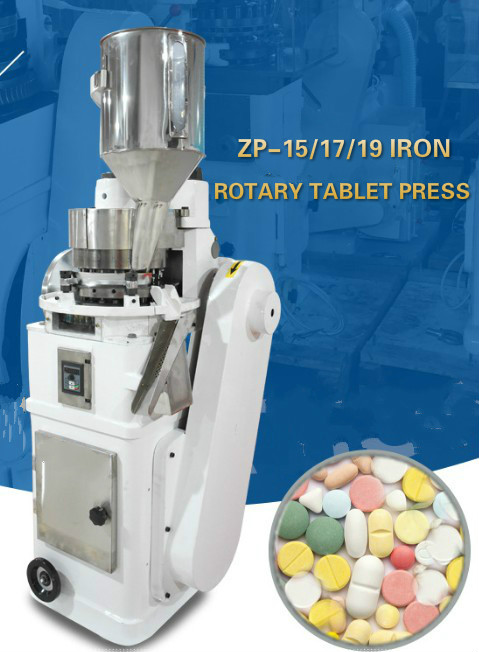

ZP-15/17/19 Rotary tablet Press Machine (Iron type)

Product introduction:

The machine compress all kinds of particles raw materials into disks shape.  It is the basic equipment  for mass production. The turntable speed, filling depth, tablet thickness of the material can be adjusted. Mechanical Postponed device on the machine can be avoided due to overload caused by  mechanical damage.

The machine is equipped with smoke powder box, running the machine through the nozzle can be lessons arising from the dust, to avoid clogging dust adhesion, and recyclable .This machine was awarded High Quality Product issued by State Medicine Administrative Bureau of China.

Work of the tablet press machine is divided into three procedures: (1) filling  (2) pressing (3) tablet out . Filling and pressure are without adjusting control mechanism, with explanation, easy to operate. The machine adopts flow grate feeding mechanism, can make the material fill the nib evenly , reduce the weight

difference. The motor is installed in the engine base, use triangular belt to drag

The worm drive turntable. It equip mechanical variable speed unit pulley on the motor reel .The speed and weight can be adjusted by moving motor.

Technical Parameters：
