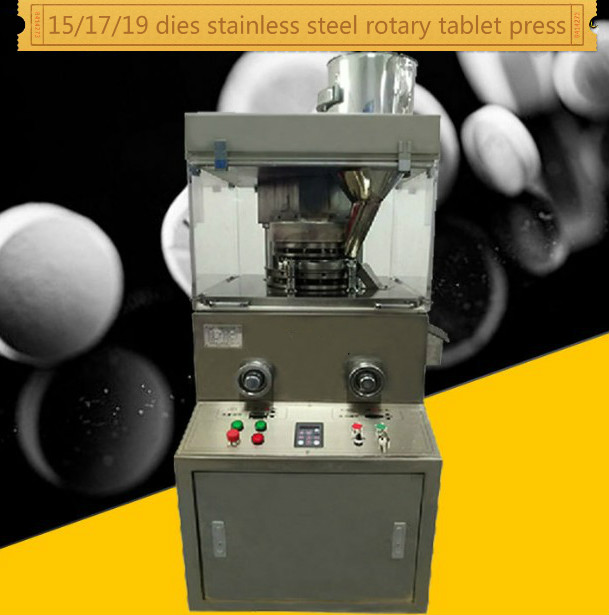

ZP-15/17/19D Rotary tablet Press Machine (Stainless steel type)



Product introduction

ZP-15/17/19D punch stainless steel rotary tablet press is a single pressure automatic rotary continuous tablet press developed by our factory. It can press granular raw materials into various ordinary and special-shaped tablets.

It is mainly applicable to the enclosure of the door of the Ministry of electronics, food, daily necessities, pharmaceutical and other industries. It is totally enclosed and made of stainless steel, meeting GMP standards. Equipped with transparent observation window, it can clearly see the working condition of the machine and can be fully opened, which is easy for internal clarity and maintenance.

Characteristics:

1.This machine has the of large pressure, large range of tablet pressing, can press ordinary and irregular shaped, circular tablet, etc.

2.It is especially suitable for many varieties and small batch production.

3.All controllers and regulating devices are centralized on one side of the body.

4.Equipped with pressure overload protection device to avoid machine damage.

5. The transmission mechanism lubricated by oil penetration is sealed under the engine body, which prolongs the service life and avoids cross contamination.

Technical parameters:

Model

ZP-15D

ZP-17D

ZP-19D

Quantity of punch&die(Set)

15

17

19

Max Pressurekn

60

60

60

Max. Dia. of Tablet (mm)

4-22

4-20

4-13

Max. Depth of Filling (mm

15

Max. Thickness of Filling (mm

6

Rotate speed  (r/min)

37

Production Capacity   (pcs/h)

35000

40000

42000

Power (KW) Electric power source(V/Hz)

2.2KW    380V/50HZ

Overall Dimensions(mm)

615*890*1415

Weight  (kg)

700

Samples:
