ZP-35/37/41D Rotary tablet Press Machine

Product introduction

The machine is used to press all sorts of granular materials, like geometry shape of profiled sheet, double lettering piece, traditional Chinese medicine tablet, western medicine tablet, calcium tablet, buccal tablet, spirulina tablet, milk tablet, candy tablet, effervescent tablets, chewable tablets, seasoning block, chicken pieces, camphor ball (naphthalene), aromatic piece, disinfection tablet, fertilizer tablet, pesticide tablet, button cell, electronics, metallurgy powder ceramic grain, etc.



Main Features:

1. The structure has double pressure, two sets of roller, frequency control of motor speed, depth of fill, tablet thickness are can adjusted.

2. The machine is equipped with mechanical buffer device, the pressure overload can automatically shutdown, killing all had a broken impact protection, can avoid parts damaged.

3. In accordance with GMP standard.

4. When manufacturing double color piece, it only need replacing components and adding powder absorbing apparatus which greatly lowers the cost and raised profit.

Technical Parameters

Product model

ZP35D

ZP37D

ZP41D

Quantity of punch&die(Set)

35

37

41

Max. Pressure (KN)

80

80

80

Max. Dia. of Tablet (mm)

13

13

13

Max. Thickness of Tablet (mm)

6

6

6

Max. Depth of Filling (mm)

15

15

15

Rotate speed (r/min)

5-36

14-37

14-37

Production Capacity   (pc/h)

150000

160000

170000

Electric power source(V/Hz)

380/50

380/50

380/50

Power (KW)

4

4

4

Outside measurement (mm)

980*1240-1690

1230*950*1670

1230-950*1670

Weight (kg)

1700

1700

1700

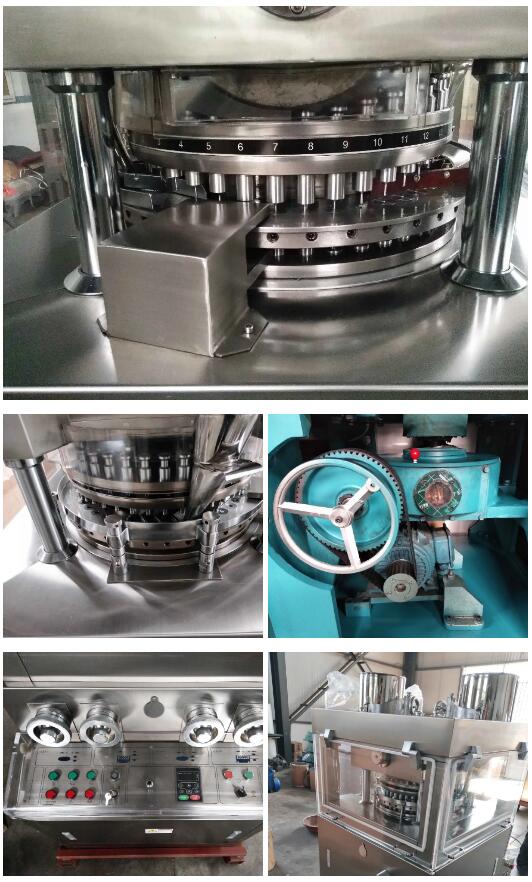

Machine details:

high speed rotary tablet press details

high speed rotary tablet press details

Tablets samples:

high speed tablets samples
