ZPW-23D High Speed Rotary tablet Press Machine for Single Color Tablets

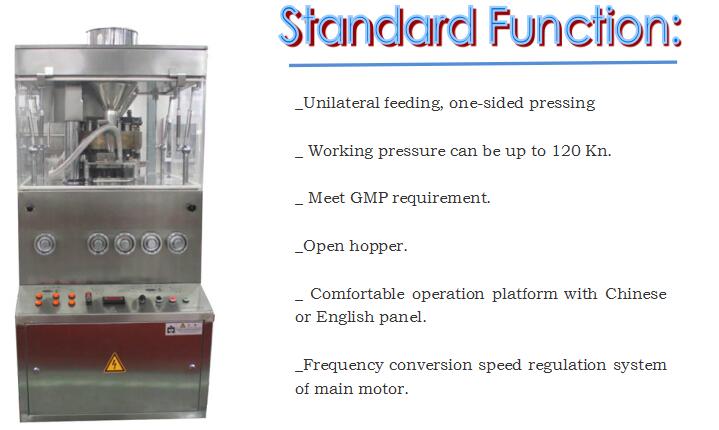

zpw 23d tablet press

 Brief introduction:

1) This machine is a kind of automatic rotating and continuous pressing machine. It is mainly used in pharmaceutical industry, food industry, chemical industry, electronics industry and so on. Granular raw materials are pressed into tablets. This machine can not only press regular circular shaped tablets, but also special-shaped shapes.

 2) 23 sets of movable-winding die can be installed on the turntable, and 23 pieces tablets can be pressed per revolution. This machine is suitable for pressing granular raw materials whose powder content (more than 100 meshes) is not more than 10%.

3) The tablet chamber is completely separated from the transmission mechanism, and there is no paint in the tablet chamber. The parts contacted with drugs are made of stainless steel or specially treated on the surface, which is non-toxic and corrosion-resistant. The pressing room is sealed with transparent plexiglass windows to prevent pollution. The pressing area can be contacted from all sides. The surface is smooth and easy to clean. The machine is equipped with continuous centralized lubrication system, which can fully lubricate the transmission system, guide rail and main friction parts, reduce noise and wear, and greatly reduce maintenance costs.

4) The electric part of the machine is controlled by variable program, which has the functions of setting large main pressure and stopping main pressure overload. This machine has the function of automatic fault diagnosis. It can locate the fault point quickly and improve the maintenance efficiency through the display.

Main Features:

 _ The machine is equipped with variable frequency motor, can adjust the rotating speed, depth of fill, tablet thickness.

_The machine is equipped with mechanical buffer device, the pressure overload can shutdown automatically, killing all had a broken impact protection, can avoid parts damaged.

_Meets the GMP standard of drug production and quality management.

 Technical Parameters



Model

ZPW-23D

( 1 hopper+1 outlet)

Qty of punch&die(Set)

23 sets

Max. Pressure (kn)

120 kn

Max. Dia. of Tablet (mm)

25mm

Max. depth of Filling (mm)

17mm

Max. thickness of tablet (mm)

9mm

Max production capacity   (pcs/h

45000 pcs/h

Main power

7.5KW

Voltage

380V/50Hz/3 phase ( customized)

Dimension(mm)

1100*940*1755mm

Net weight (kg)

1800KG

 NOTES: This machine is specially designed for pressing single color tablets. If you want to press double color tablets, please contact us in advance and choose ZPW-23D (2 hoppers + 1 outlet) customized machine.

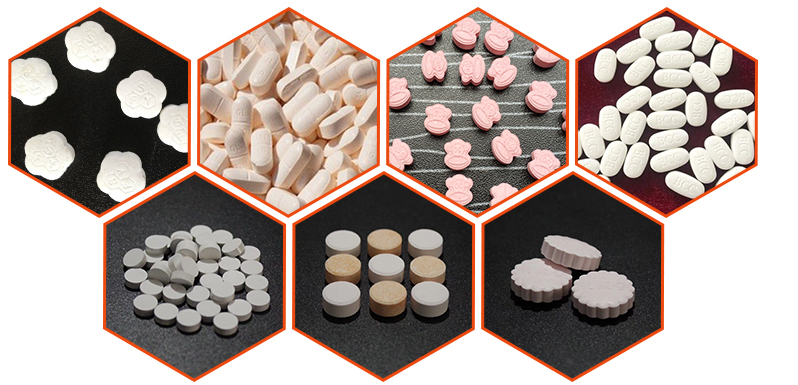

tablets samples
