ZWS-137 Tablet Deduster

Supplier: FUYI Machinery

Share to:

Details

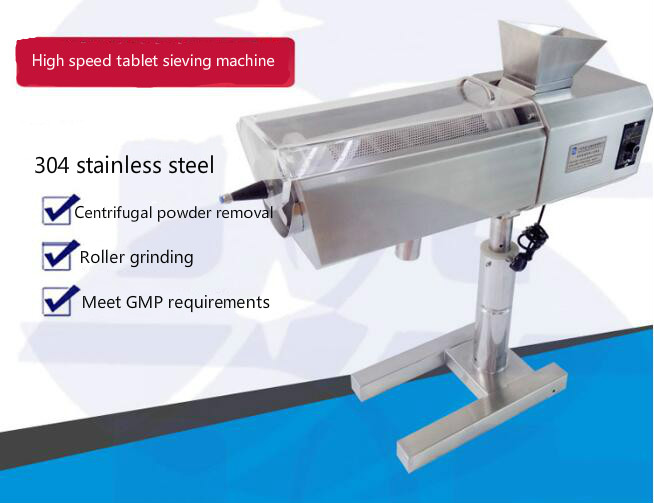

ZWS-137 Tablet Deduster

ZWS-137 Tablet Deduster



Product Application:

The ZWS137 high-speed tablet sieving machine adopts compressed air for scavenging, centrifugal dust removing and roller edge grinding principle to eliminate dust on the tablet surfaces and edge burrs, so as to make the tablet surfaces clean and the edges neat.

The tablet sieving and conveying process is completed inside a sieving box with a closed structure.
When it works, the sieving box and material inlet and outlet are under negative pressure status without dust emission.
The sieving box and power box are totally isolated from each other.
The quickly disassembled structure makes it convenient to disassemble, install and clean the machine.
The parts that contact the medicine are all made of stainless steel, meeting the requirements for pharmaceutical equipment in GMP.

Features:

The part of this machine makes basically from stainless steel material, easy to wash, is able to bear corrosion, have noise moves low, nimbly, the rotation rate continues adjustable, and continuous removal the dust etc characteristic.

 Specifications:



Model

ZWS-137

Capacity(pcs/hour)

7000pcs/min

Power

220V 50Hz 1P/ 110V 60Hz 1P

Dimensions(mm)

750*320*1030mm

Weight (kg)

37kg

Sieving cylinder diameter

3mm

Sieving cylinder rotation speed

0-30rmp

Power

60w
