cream sample sachet packing machine
Supplier: FUYI Machinery
Share to:
Details

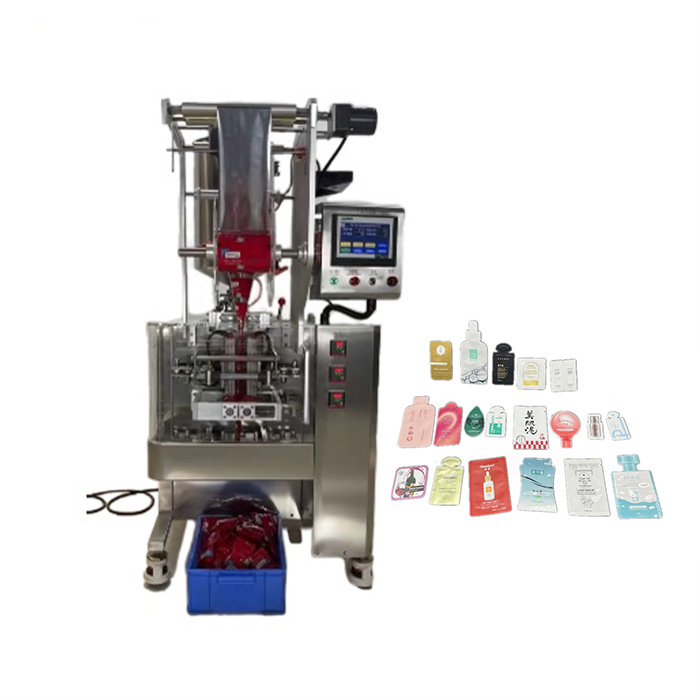

Automatic 4-side sealing cream shampoo sample sachet packing machine
Brief introduction:
This packing machine is used for automatically packing small sachet with liquid, lotion, cream or paste with good fluidity .
3-side sealing , back-side sealing, and 4 side sealing sachets all can be made.
Main feature：
1.It can automatically complete cutting, bag making, measuring, filling, sealing, cutting, counting, and can be configured with coding functions according to needs.
2.Using touch screen operation PLC control, driving stepper motor to control bag length, stable performance, convenient
adjustment, and accurate detection.
3. Intelligent temperature controller with PID adjustment ensures that the temperature error range is controlled within 1 ℃.
4.. Dishcarging methods: As per customer’s materials.
5. Mixing and heat preservation devices can be equipped as per your request.
1.It can automatically complete cutting, bag making, measuring, filling, sealing, cutting, counting, and can be configured with coding functions according to needs.
2.Using touch screen operation PLC control, driving stepper motor to control bag length, stable performance, convenient
adjustment, and accurate detection.
3. Intelligent temperature controller with PID adjustment ensures that the temperature error range is controlled within 1 ℃.
4.. Dishcarging methods: As per customer’s materials.
5. Mixing and heat preservation devices can be equipped as per your request.
Technical Paramers
|
Model No.:
|
JY-61
|
|
Capacity:
|
30-70bags/Min(Determined by packing material)
|
|
Bag type:
|
3-Side sealing/back-side sealing/4 side sealing
|
|
Filling range:
|
1-100g
|
|
Measuring methods:
|
Electronic scale sensor weighing
|
|
Bag size:
|
Bag size: 30-180mm in length and 20-75mm in width
|
|
Packing film:
|
120mm、140mm、160mm
|
|
Packing material:
|
Nylon, Polyester net non-woven fabrics,. ultrasonic sealing materials
|
|
Air consumption:
|
0.6m3/min 0.8Mpa
|
|
Total power:
|
AC220V/50Hz/2kw
|
|
Dimension:
|
850 * 1100 *1900mm
|
|
Net weight:
|
230kg
|
